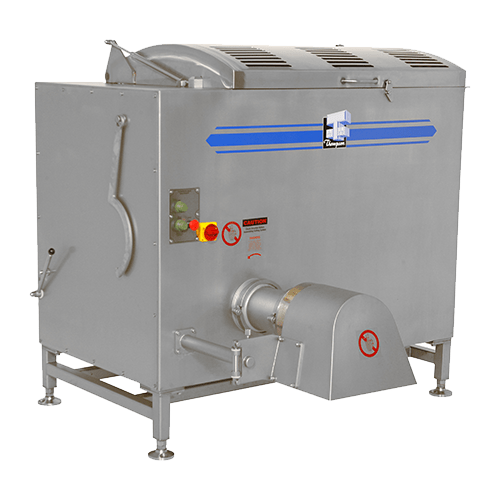

Thompson 5000 Mixer Grinder

Mixer Grinders Thompson 5000

POA

(POA)

Item in Stock

The Thompson 5000 mixer grinder is a step up from the highly successful Thompson 4000 series mixer grinders. The unique characteristics of right angle feed screw operation to mixing bowl reduces the length of feed screw from the Thompson 4000 and helps to achieve similar high capacity production output rate as the Thompson 6000 series. The Thompson 5000 is heavy duty industrial machine designed Specifically for large volume mixing and mincing. The mixer grinder is powered by high performance motors through 2 independent helical reduction gear units.

The Thompson 5000 has the option of a unique product discharge chute that enables the mixing bowl to be emptied without passing through the feed screw and cutting system. Also has the option of automatic reversing feed screw (optional) feed screw automatically and intermittently reversing during mixing cycles to transport and eject product out of feed screw channel into to mixing bowl to ensure homogenous blend of product batch

Enquire Here Info Download

Product Features

  • Two Speed Mince Feed Screw Operation, the second Speed Mincing Function Ensures Fastest Possible Production Rate
  • 15kw Helical Mince Drive Delivers A More Powerful Performance Ensures Efficient Discharge Whilst Minimizing Squashing or Pulping of the Product
  • Quick Release Removable Stainless Steel Barrel Assembly Enables Thorough Cleaning and Sanitation
  • Reciprocate Mixing Action Ensures an Efficient Mix and Dispensation of The Product
  • Counter Balanced Safety Interlocked Domed Lid Complete with Viewing Grills
  • 56 Series (152mm) Cutting Head Size
  • Low Loading Height
  • Smooth Corners and Surface Finish Reduce Cleaning Down Times
  • High Quality 304 Stainless Steel Machine Body, Barrel, Feed Screw, Lock Ring and Mixing Paddle
  • Fully Seam Welded Bowl - Welded Both Inside and Outside

Technical Specification

  • Hopper Capacity 530 Litres
  • Mix Capacity 300 Kg
  • Three Phase
  • Weight 1200kg
